德國BOSERL研發制造環保齒輪減速馬達一體式_蝸輪蝸桿減速機配電機_齒輪減速電動機,19年創辦中國BOSERL齒輪減速馬達生產廠家”伯仕傳動”

齒輪減速馬達一體機_蝸輪蝸桿減速機配電機-德國BOSERL齒輪減速電機生產廠家

咨詢服務熱線：

13360667204

微信13360667204

平行軸減速機
網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速馬達 > FAF系列齒輪減速馬達

FAF28減速機詳細信息

prevnext

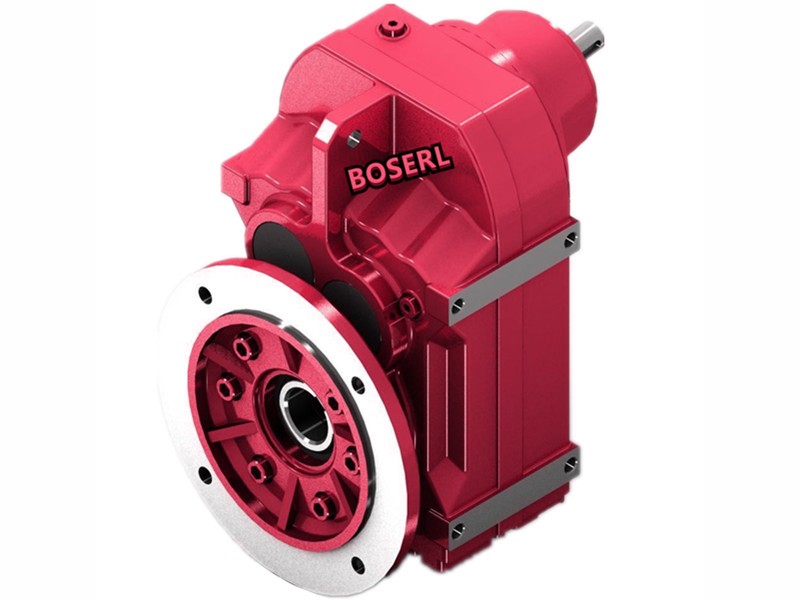

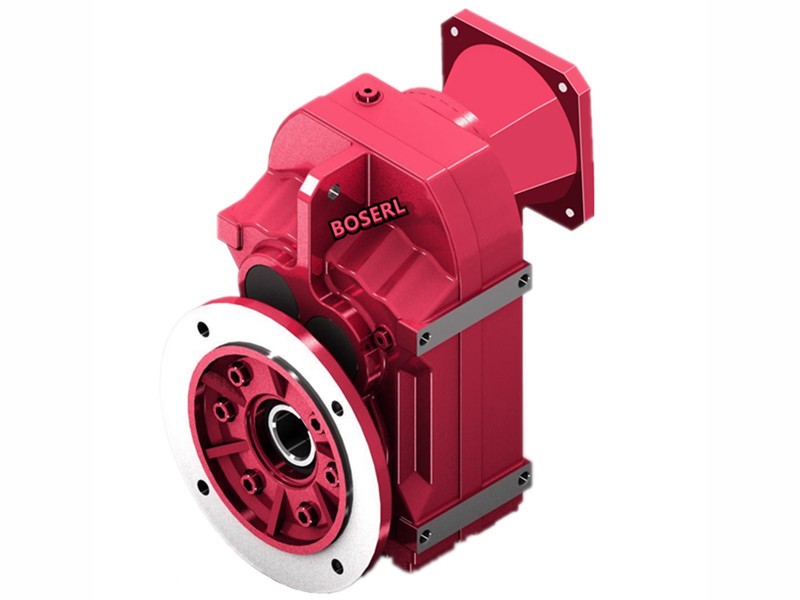

FAF28減速機

訂購熱線：13360667204
  1. 詳細信息

FAF28減速機選型計算：齒輪減速馬達

螺桿輸送線參數：一分鐘走2600mm，螺桿的導距10mm，載重1000kg

10mm螺桿的導距×2因為導距有兩面得出螺距=20mm

2600mm÷20mm=130r/min輸出轉數

載重1000kg=980N.m×0.06摩擦力=58.8N.m

1400÷130r/min=10.77減速比

58.8N.m÷10.77減速比=5.46N.m

5.46N.m換算成電機功率=0.87KW左右

對應的FAF28減速機選型參數：

型號：FAF28-BVPEJ1.1KW

減速比：10.55

輸出轉數：135r/min

輸出扭矩：78N.m

安全系數：1.65

FAF28減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）變頻電機減速機


FAF28平行軸齒輪減速機型號：


FAF28系列減速機參數大全：平行軸斜齒輪減速機

減速機配0.12KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.12KW0.12KW9.80rpm117N.m1.10
F27Y0.12KW0.12KW11.0rpm107N.m1.20
F27Y0.12KW0.12KW13.0rpm91N.m1.40
F27Y0.12KW0.12KW15.0rpm79N.m1.65
F27Y0.12KW0.12KW16.0rpm73N.m1.75
F27Y0.12KW0.12KW18.0rpm64N.m2.00
F27Y0.12KW0.12KW19.0rpm60N.m2.20
F27Y0.12KW0.12KW22.0rpm53N.m2.40
F27Y0.12KW0.12KW24.0rpm47N.m2.80
F27Y0.12KW0.12KW28.0rpm42N.m3.10
F27Y0.12KW0.12KW30.0rpm39N.m3.40
F27Y0.12KW0.12KW34.0rpm34N.m3.80
F27Y0.12KW0.12KW36.0rpm32N.m4.10
F27Y0.12KW0.12KW41.0rpm28N.m4.60
F27Y0.12KW0.12KW47.0rpm24N.m5.30
F27Y0.12KW0.12KW51.0rpm23N.m5.80
F27Y0.12KW0.12KW59.0rpm19N.m6.70
F27Y0.12KW0.12KW68.0rpm17N.m7.80
F27Y0.12KW0.12KW73.0rpm16N.m8.30
F27Y0.12KW0.12KW85.0rpm14N.m9.60
F27Y0.12KW0.12KW100rpm12N.m11.0
F27Y0.12KW0.12KW112rpm10N.m13.0
F27Y0.12KW0.12KW131rpm8.8N.m15.0
F27Y0.12KW0.12KW140rpm8.2N.m16.0
F27Y0.12KW0.12KW147rpm7.8N.m17.0
F27Y0.12KW0.12KW170rpm6.7N.m18.0
F27Y0.12KW0.12KW200rpm5.7N.m20.0
F27Y0.12KW0.12KW224rpm5.1N.m21.0
F27Y0.12KW0.12KW262rpm4.4N.m23.0
F27Y0.12KW0.12KW280rpm4.1N.m23.0
F27Y0.12KW0.12KW332rpm3.5N.m25.0

減速機配0.18KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.18KW0.18KW12.0rpm143N.m0.90
F27Y0.18KW0.18KW14.0rpm123N.m1.05
F27Y0.18KW0.18KW15.0rpm115N.m1.15
F27Y0.18KW0.18KW17.0rpm100N.m1.30
F27Y0.18KW0.18KW18.0rpm94N.m1.40
F27Y0.18KW0.18KW21.0rpm83N.m1.55
F27Y0.18KW0.18KW23.0rpm74N.m1.75
F27Y0.18KW0.18KW26.0rpm65N.m2.00
F27Y0.18KW0.18KW28.0rpm61N.m2.10
F27Y0.18KW0.18KW32.0rpm53N.m2.40
F27Y0.18KW0.18KW34.0rpm50N.m2.60
F27Y0.18KW0.18KW39.0rpm44N.m3.00
F27Y0.18KW0.18KW45.0rpm38N.m3.40
F27Y0.18KW0.18KW49.0rpm35N.m3.70
F27Y0.18KW0.18KW57.0rpm30N.m4.30
F27Y0.18KW0.18KW65.0rpm26N.m5.00
F27Y0.18KW0.18KW70.0rpm24N.m5.30
F27Y0.18KW0.18KW81.0rpm21N.m6.10
F27Y0.18KW0.18KW95.0rpm18N.m7.20
F27Y0.18KW0.18KW107rpm16N.m8.10
F27Y0.18KW0.18KW125rpm14N.m9.50
F27Y0.18KW0.18KW134rpm13N.m10.0
F27Y0.18KW0.18KW140rpm12N.m11.0
F27Y0.18KW0.18KW162rpm11N.m12.0
F27Y0.18KW0.18KW191rpm9N.m13.0
F27Y0.18KW0.18KW214rpm8N.m14.0
F27Y0.18KW0.18KW251rpm6.9N.m14.0
F27Y0.18KW0.18KW268rpm6.4N.m15.0
F27Y0.18KW0.18KW318rpm5.4N.m16.0

減速機配0.25KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.25KW0.25KW17.0rpm142N.m0.90
F27Y0.25KW0.25KW18.0rpm133N.m1.00
F27Y0.25KW0.25KW20.0rpm117N.m1.10
F27Y0.25KW0.25KW23.0rpm104N.m1.25
F27Y0.25KW0.25KW26.0rpm92N.m1.40
F27Y0.25KW0.25KW28.0rpm86N.m1.50
F27Y0.25KW0.25KW32.0rpm75N.m1.75
F27Y0.25KW0.25KW34.0rpm70N.m1.85
F27Y0.25KW0.25KW38.0rpm62N.m2.10
F27Y0.25KW0.25KW44.0rpm54N.m2.40
F27Y0.25KW0.25KW48.0rpm50N.m2.60
F27Y0.25KW0.25KW56.0rpm43N.m3.00
F27Y0.25KW0.25KW64.0rpm37N.m3.50
F27Y0.25KW0.25KW69.0rpm35N.m3.80
F27Y0.25KW0.25KW80.0rpm30N.m4.40
F27Y0.25KW0.25KW94.0rpm25N.m5.10
F27Y0.25KW0.25KW105rpm23N.m5.70
F27Y0.25KW0.25KW123rpm19N.m6.70
F27Y0.25KW0.25KW132rpm18N.m7.20
F27Y0.25KW0.25KW138rpm17N.m7.50
F27Y0.25KW0.25KW160rpm15N.m8.30
F27Y0.25KW0.25KW188rpm13N.m9.00
F27Y0.25KW0.25KW211rpm11N.m9.60
F27Y0.25KW0.25KW247rpm9.7N.m10.0
F27Y0.25KW0.25KW264rpm9.1N.m11.0
F27Y0.25KW0.25KW313rpm7.6N.m11.0

減速機配0.37KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.37KW0.37KW24.0rpm145N.m0.90
F27Y0.37KW0.37KW28.0rpm128N.m1.00
F27Y0.37KW0.37KW30.0rpm120N.m1.10
F27Y0.37KW0.37KW34.0rpm105N.m1.25
F27Y0.37KW0.37KW36.0rpm98N.m1.35
F27Y0.37KW0.37KW41.0rpm87N.m1.50
F27Y0.37KW0.37KW47.0rpm76N.m1.70
F27Y0.37KW0.37KW51.0rpm70N.m1.85
F27Y0.37KW0.37KW59.0rpm60N.m2.20
F27Y0.37KW0.37KW68.0rpm52N.m2.50
F27Y0.37KW0.37KW73.0rpm48N.m2.70
F27Y0.37KW0.37KW85.0rpm42N.m3.10
F27Y0.37KW0.37KW100rpm35N.m3.70
F27Y0.37KW0.37KW112rpm32N.m4.10
F27Y0.37KW0.37KW131rpm27N.m4.80
F27Y0.37KW0.37KW140rpm25N.m5.10
F27Y0.37KW0.37KW147rpm24N.m5.40
F27Y0.37KW0.37KW170rpm21N.m5.90
F27Y0.37KW0.37KW200rpm18N.m6.40
F27Y0.37KW0.37KW224rpm16N.m6.90
F27Y0.37KW0.37KW262rpm14N.m7.40
F27Y0.37KW0.37KW280rpm13N.m7.60
F27Y0.37KW0.37KW332rpm11N.m8.20

減速機配0.55KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.55KW0.55KW59.0rpm88N.m1.45
F27Y0.55KW0.55KW68.0rpm77N.m1.70
F27Y0.55KW0.55KW73.0rpm72N.m1.80
F27Y0.55KW0.55KW85.0rpm62N.m2.10
F27Y0.55KW0.55KW100rpm53N.m2.50
F27Y0.55KW0.55KW112rpm47N.m2.80
F27Y0.55KW0.55KW131rpm40N.m3.20
F27Y0.55KW0.55KW140rpm38N.m3.50
F27Y0.55KW0.55KW147rpm36N.m3.60
F27Y0.55KW0.55KW170rpm31N.m4.00
F27Y0.55KW0.55KW200rpm26N.m4.30
F27Y0.55KW0.55KW224rpm24N.m4.60
F27Y0.55KW0.55KW262rpm20N.m5.00
F27Y0.55KW0.55KW280rpm19N.m5.10
F27Y0.55KW0.55KW332rpm16N.m5.50

減速機配0.75KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.75KW0.75KW62.0rpm116N.m1.10
F27Y0.75KW0.75KW71.0rpm101N.m1.30
F27Y0.75KW0.75KW76.0rpm94N.m1.40
F27Y0.75KW0.75KW88.0rpm81N.m1.60
F27Y0.75KW0.75KW104rpm69N.m1.90
F27Y0.75KW0.75KW116rpm62N.m2.10
F27Y0.75KW0.75KW136rpm53N.m2.50
F27Y0.75KW0.75KW145rpm49N.m2.60
F27Y0.75KW0.75KW153rpm47N.m2.80
F27Y0.75KW0.75KW177rpm41N.m3.00
F27Y0.75KW0.75KW208rpm34N.m3.30
F27Y0.75KW0.75KW233rpm31N.m3.50
F27Y0.75KW0.75KW272rpm26N.m3.80
F27Y0.75KW0.75KW291rpm25N.m3.90
F27Y0.75KW0.75KW345rpm21N.m4.20

減速機配1.1KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y1.1KW1.1KW70.0rpm149N.m0.85
F27Y1.1KW1.1KW75.0rpm139N.m0.95
F27Y1.1KW1.1KW87.0rpm120N.m1.10
F27Y1.1KW1.1KW103rpm102N.m1.25
F27Y1.1KW1.1KW115rpm91N.m1.40
F27Y1.1KW1.1KW135rpm78N.m1.65
F27Y1.1KW1.1KW144rpm73N.m1.80
F27Y1.1KW1.1KW151rpm70N.m1.85
F27Y1.1KW1.1KW175rpm60N.m2.00
F27Y1.1KW1.1KW206rpm51N.m2.20
F27Y1.1KW1.1KW230rpm46N.m2.40
F27Y1.1KW1.1KW270rpm39N.m2.60
F27Y1.1KW1.1KW288rpm36N.m2.60
F27Y1.1KW1.1KW342rpm31N.m2.80

減速機配1.5KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y1.5KW1.5KW103rpm139N.m0.95
F27Y1.5KW1.5KW116rpm124N.m1.05
F27Y1.5KW1.5KW136rpm106N.m1.25
F27Y1.5KW1.5KW145rpm99N.m1.30
F27Y1.5KW1.5KW152rpm94N.m1.40
F27Y1.5KW1.5KW176rpm81N.m1.50
F27Y1.5KW1.5KW207rpm69N.m1.65
F27Y1.5KW1.5KW232rpm62N.m1.75
F27Y1.5KW1.5KW271rpm53N.m1.90
F27Y1.5KW1.5KW290rpm49N.m1.95
F27Y1.5KW1.5KW344rpm42N.m2.10

減速機配2.2KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y2.2KW2.2KW177rpm119N.m1.10
F27Y2.2KW2.2KW208rpm101N.m1.30
F27Y2.2KW2.2KW233rpm90N.m1.45
F27Y2.2KW2.2KW273rpm77N.m1.70
F27Y2.2KW2.2KW291rpm72N.m1.80
F27Y2.2KW2.2KW354rpm59N.m2.10
F27Y2.2KW2.2KW417rpm50N.m2.30
F27Y2.2KW2.2KW467rpm45N.m2.40
F27Y2.2KW2.2KW547rpm38N.m2.60
F27Y2.2KW2.2KW584rpm36N.m2.70
F27Y2.2KW2.2KW693rpm30N.m2.90

FAF28減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：F28減速機

關鍵詞:GFAF系列減速器一體式_配變頻電機減速機_調速電機減速機_FAF系列減速機_扁平減速機_FAF向減速機_變頻減速機_調速減速機_GFAF系列減速機_FAF系列減速器

FAF系列齒輪減速馬達型號：FAF28減速機,FAF38減速機,FAF48減速機,FAF68減速機,FAF78減速機,FAF88減速機,FAF98減速機,FAF108減速機,FAF128減速機,FAF158減速機

FAF系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   FAF28減速機 FAF27平行軸齒輪減速機 FAF27系列減速機 FAF27減速機傳動比 FAF27減速機選型參數 FAF27減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FAF28減速機CAD三維圖紙下載 點擊下載
FAF28減速機選型參數下載 點擊下載
