FA88減速電機詳細信息

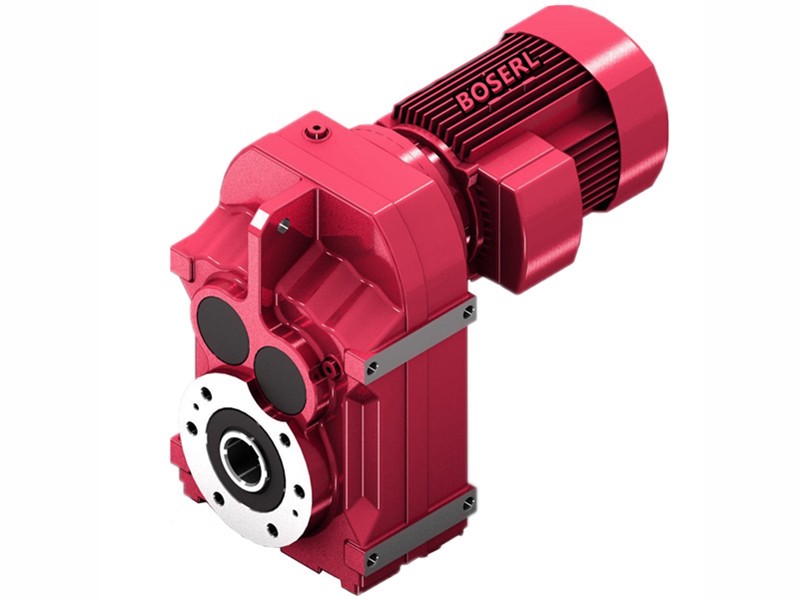

FA88減速電機
訂購熱線：13360667204
FA88減速電機基座參數計算公式：齒輪減速馬達
滑塊傳送帶參數：承重7300Kg，輪子直徑φ240mm，拉動速度0.79m/s
運輸速度0.79m×60s=47.4m每分鐘
3.14(圓周率)×0.24m(輪子直徑φ240mm)=0.7536m
47.4m÷0.7536m=62.9r/min輸出轉數
輸送物流7300Kg換算成N=71540n
71540n×0.12輪子半徑×0.06摩擦系數=515.09×2=1030.18N.m輸出扭矩
1400電機輸入轉速÷62.9r/min=22.26減速比
1030.18N.m輸出扭矩÷22.26減速比=46.28N.m電機扭矩
46.28N.m電機扭矩換算成電機功率=7.35KW左右
對應的FA88減速電機功率型號：
型號：FA88-BVP7.5KW
減速比：21.43
輸出轉數：69轉
輸出扭矩：1040N.m
安全系數：1.45
FA88減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機

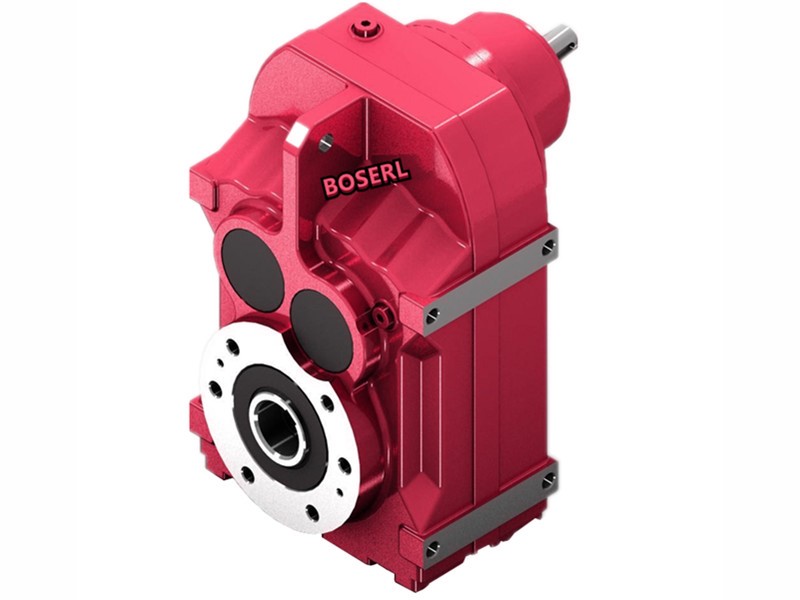

FA88平行軸齒輪減速機型號：
FA88減速電機型號參數：分體減速機電機
FA88減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y0.75KW | 0.75KW | 5.30rpm | 1350N.m | 2.20 |
| F87Y0.75KW | 0.75KW | 5.60rpm | 1270N.m | 2.40 |
| F87Y0.75KW | 0.75KW | 6.30rpm | 1140N.m | 2.60 |
FA88減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y1.1KW | 1.1KW | 5.20rpm | 2000N.m | 1.50 |
| F87Y1.1KW | 1.1KW | 5.60rpm | 1880N.m | 1.60 |
| F87Y1.1KW | 1.1KW | 6.20rpm | 1690N.m | 1.75 |
| F87Y1.1KW | 1.1KW | 7.20rpm | 1450N.m | 2.10 |
| F87Y1.1KW | 1.1KW | 7.90rpm | 1330N.m | 2.20 |
| F87Y1.1KW | 1.1KW | 8.90rpm | 1180N.m | 2.50 |
| F87Y1.1KW | 1.1KW | 11.0rpm | 990N.m | 3.00 |
| F87Y1.1KW | 1.1KW | 12.0rpm | 910N.m | 3.30 |
FA88減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y1.5KW | 1.5KW | 5.30rpm | 2710N.m | 1.10 |
| F87Y1.5KW | 1.5KW | 5.60rpm | 2550N.m | 1.15 |
| F87Y1.5KW | 1.5KW | 6.20rpm | 2290N.m | 1.30 |
| F87Y1.5KW | 1.5KW | 7.20rpm | 1970N.m | 1.50 |
| F87Y1.5KW | 1.5KW | 8.00rpm | 1800N.m | 1.65 |
| F87Y1.5KW | 1.5KW | 9.00rpm | 1590N.m | 1.90 |
| F87Y1.5KW | 1.5KW | 11.0rpm | 1340N.m | 2.20 |
| F87Y1.5KW | 1.5KW | 13.00rpm | 1090N.m | 2.70 |
| F87Y1.5KW | 1.5KW | 15.00rpm | 980N.m | 3.10 |
FA88減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y2.2KW | 2.2KW | 7.20rpm | 2900N.m | 1.05 |
| F87Y2.2KW | 2.2KW | 7.90rpm | 2650N.m | 1.15 |
| F87Y2.2KW | 2.2KW | 8.90rpm | 2350N.m | 1.25 |
| F87Y2.2KW | 2.2KW | 11.0rpm | 1970N.m | 1.50 |
| F87Y2.2KW | 2.2KW | 12.00rpm | 1810N.m | 1.65 |
| F87Y2.2KW | 2.2KW | 13.00rpm | 1610N.m | 1.85 |
| F87Y2.2KW | 2.2KW | 15.00rpm | 1440N.m | 2.10 |
| F87Y2.2KW | 2.2KW | 16.0rpm | 1290N.m | 2.30 |
| F87Y2.2KW | 2.2KW | 19.0rpm | 1120N.m | 2.70 |
| F87Y2.2KW | 2.2KW | 21.0rpm | 1000N.m | 3.00 |
| F87Y2.2KW | 2.2KW | 25.0rpm | 830N.m | 3.60 |
| F87Y2.2KW | 2.2KW | 28.0rpm | 740N.m | 4.00 |
| F87Y2.2KW | 2.2KW | 31.0rpm | 665N.m | 4.20 |
FA88減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y3KW | 3KW | 11.0rpm | 2640N.m | 1.15 |
| F87Y3KW | 3KW | 12.0rpm | 2420N.m | 1.25 |
| F87Y3KW | 3KW | 13.0rpm | 2150N.m | 1.40 |
| F87Y3KW | 3KW | 15.0rpm | 1920N.m | 1.55 |
| F87Y3KW | 3KW | 17.0rpm | 1730N.m | 1.75 |
| F87Y3KW | 3KW | 19.0rpm | 1500N.m | 2.00 |
| F87Y3KW | 3KW | 21.0rpm | 1340N.m | 2.20 |
| F87Y3KW | 3KW | 26.0rpm | 1110N.m | 2.70 |
| F87Y3KW | 3KW | 29.0rpm | 990N.m | 3.00 |
FA88減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y4KW | 4KW | 13.0rpm | 2860N.m | 1.05 |
| F87Y4KW | 4KW | 15.0rpm | 2560N.m | 1.15 |
| F87Y4KW | 4KW | 17.0rpm | 2300N.m | 1.30 |
| F87Y4KW | 4KW | 19.0rpm | 1990N.m | 1.50 |
| F87Y4KW | 4KW | 21.0rpm | 1780N.m | 1.70 |
| F87Y4KW | 4KW | 26.0rpm | 1480N.m | 2.00 |
| F87Y4KW | 4KW | 29.0rpm | 1310N.m | 2.20 |
| F87Y4KW | 4KW | 32.0rpm | 1180N.m | 2.40 |
FA88減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y5.5KW | 5.5KW | 17.0rpm | 3170N.m | 0.95 |
| F87Y5.5KW | 5.5KW | 19.0rpm | 2750N.m | 1.10 |
| F87Y5.5KW | 5.5KW | 21.0rpm | 2460N.m | 1.20 |
| F87Y5.5KW | 5.5KW | 26.0rpm | 2040N.m | 1.45 |
| F87Y5.5KW | 5.5KW | 29.0rpm | 1810N.m | 1.60 |
| F87Y5.5KW | 5.5KW | 32.0rpm | 1630N.m | 1.75 |
| F87Y5.5KW | 5.5KW | 37.0rpm | 1410N.m | 1.90 |
| F87Y5.5KW | 5.5KW | 41.0rpm | 1270N.m | 2.00 |
| F87Y5.5KW | 5.5KW | 50.0rpm | 1050N.m | 2.40 |
| F87Y5.5KW | 5.5KW | 43.0rpm | 1220N.m | 2.10 |
| F87Y5.5KW | 5.5KW | 51.0rpm | 1030N.m | 2.40 |
| F87Y5.5KW | 5.5KW | 55.0rpm | 950N.m | 3.10 |
| F87Y5.5KW | 5.5KW | 61.0rpm | 850N.m | 3.50 |
FA88減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y7.5KW | 7.5KW | 26.0rpm | 2760N.m | 1.10 |
| F87Y7.5KW | 7.5KW | 29.0rpm | 2450N.m | 1.20 |
| F87Y7.5KW | 7.5KW | 32.0rpm | 2200N.m | 1.30 |
| F87Y7.5KW | 7.5KW | 37.0rpm | 1910N.m | 1.40 |
| F87Y7.5KW | 7.5KW | 42.0rpm | 1710N.m | 1.50 |
| F87Y7.5KW | 7.5KW | 50.0rpm | 1420N.m | 1.75 |
| F87Y7.5KW | 7.5KW | 51.0rpm | 1400N.m | 1.75 |
| F87Y7.5KW | 7.5KW | 55.0rpm | 1290N.m | 2.30 |
| F87Y7.5KW | 7.5KW | 62.0rpm | 1150N.m | 2.60 |
| F87Y7.5KW | 7.5KW | 69.0rpm | 1030N.m | 2.90 |
| F87Y7.5KW | 7.5KW | 76.0rpm | 940N.m | 3.20 |
| F87Y7.5KW | 7.5KW | 86.0rpm | 830N.m | 3.60 |
| F87Y7.5KW | 7.5KW | 95.0rpm | 750N.m | 4.00 |
FA88減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y11KW | 11KW | 38.0rpm | 2790N.m | 0.95 |
| F87Y11KW | 11KW | 42.0rpm | 2500N.m | 1.05 |
| F87Y11KW | 11KW | 51.0rpm | 2070N.m | 1.20 |
| F87Y11KW | 11KW | 56.0rpm | 1880N.m | 1.60 |
| F87Y11KW | 11KW | 62.0rpm | 1680N.m | 1.80 |
| F87Y11KW | 11KW | 69.0rpm | 1510N.m | 2.00 |
| F87Y11KW | 11KW | 76.0rpm | 1370N.m | 2.20 |
| F87Y11KW | 11KW | 86.0rpm | 1210N.m | 2.50 |
| F87Y11KW | 11KW | 95.0rpm | 1100N.m | 2.70 |
| F87Y11KW | 11KW | 112rpm | 930N.m | 3.20 |
FA88減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y15KW | 15KW | 55.0rpm | 2590N.m | 1.15 |
| F87Y15KW | 15KW | 62.0rpm | 2310N.m | 1.30 |
| F87Y15KW | 15KW | 69.0rpm | 2080N.m | 1.45 |
| F87Y15KW | 15KW | 76.0rpm | 1880N.m | 1.60 |
| F87Y15KW | 15KW | 86.0rpm | 1670N.m | 1.80 |
| F87Y15KW | 15KW | 95.0rpm | 1510N.m | 2.00 |
| F87Y15KW | 15KW | 112rpm | 1280N.m | 2.30 |
| F87Y15KW | 15KW | 128rpm | 1120N.m | 2.70 |
| F87Y15KW | 15KW | 153rpm | 930N.m | 3.10 |
| F87Y15KW | 15KW | 177rpm | 810N.m | 1.90 |
| F87Y15KW | 15KW | 199rpm | 715N.m | 2.10 |
| F87Y15KW | 15KW | 220rpm | 645N.m | 2.40 |
| F87Y15KW | 15KW | 260rpm | 550N.m | 2.80 |
| F87Y15KW | 15KW | 298rpm | 480N.m | 3.20 |
| F87Y15KW | 15KW | 356rpm | 400N.m | 3.60 |
FA88減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y18.5KW | 18.5KW | 69.0rpm | 2570N.m | 1.15 |
| F87Y18.5KW | 18.5KW | 76.0rpm | 2320N.m | 1.30 |
| F87Y18.5KW | 18.5KW | 86.0rpm | 2060N.m | 1.45 |
| F87Y18.5KW | 18.5KW | 95.0rpm | 1860N.m | 1.60 |
| F87Y18.5KW | 18.5KW | 112rpm | 1580N.m | 1.90 |
| F87Y18.5KW | 18.5KW | 128rpm | 1380N.m | 2.20 |
| F87Y18.5KW | 18.5KW | 153rpm | 1150N.m | 2.50 |
| F87Y18.5KW | 18.5KW | 177rpm | 990N.m | 1.55 |
| F87Y18.5KW | 18.5KW | 199rpm | 880N.m | 1.75 |
| F87Y18.5KW | 18.5KW | 220rpm | 800N.m | 1.90 |
| F87Y18.5KW | 18.5KW | 260rpm | 675N.m | 2.20 |
| F87Y18.5KW | 18.5KW | 298rpm | 590N.m | 2.60 |
| F87Y18.5KW | 18.5KW | 356rpm | 495N.m | 2.90 |
FA88減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| F87Y22KW | 22KW | 69.0rpm | 3030N.m | 1.00 |
| F87Y22KW | 22KW | 76.0rpm | 2740N.m | 1.10 |
| F87Y22KW | 22KW | 86.0rpm | 2430N.m | 1.25 |
| F87Y22KW | 22KW | 95.0rpm | 2200N.m | 1.35 |
| F87Y22KW | 22KW | 112rpm | 1860N.m | 1.60 |
| F87Y22KW | 22KW | 129rpm | 1630N.m | 1.85 |
| F87Y22KW | 22KW | 154rpm | 1360N.m | 2.10 |
| F87Y22KW | 22KW | 178rpm | 1180N.m | 1.30 |
| F87Y22KW | 22KW | 201rpm | 1040N.m | 1.45 |
| F87Y22KW | 22KW | 222rpm | 940N.m | 1.60 |
| F87Y22KW | 22KW | 262rpm | 800N.m | 1.90 |
| F87Y22KW | 22KW | 300rpm | 700N.m | 2.20 |
| F87Y22KW | 22KW | 358rpm | 585N.m | 2.50 |
