KA88減速電機詳細信息

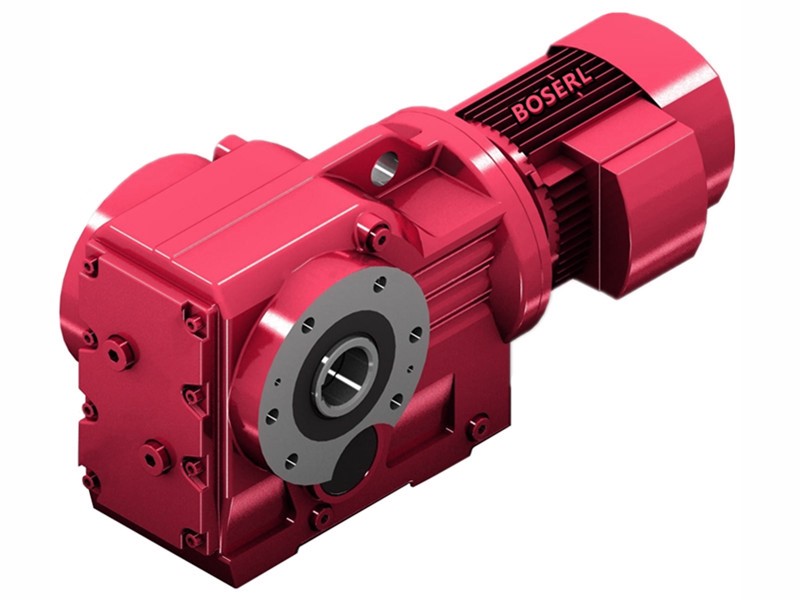

KA88減速電機
KA88減速電機選型計算：齒輪減速馬達
混泥土攪拌罐參數：攪拌罐負載640公斤，攪動104圈/每分鐘，攪動齒輪直徑96
電機轉數1400÷104圈（輸出轉速）=減速比13.46
攪拌640公斤混泥土=6272N
6272N×0.048攪動齒輪半徑=301.056×3攪拌泥狀物料扭矩放大三倍=903.168N.m
903.168N.m÷13.46減速比=67.1N.m電機扭矩
67.1N.m電機扭矩?fù)Q算成功率10.65KW以上
對應的KA88減速機選型參數：
型號：KA88-BVP11KW
減速比：14.45
輸出轉數：102轉每分鐘
輸出扭矩：1020N.m
安全系數：2

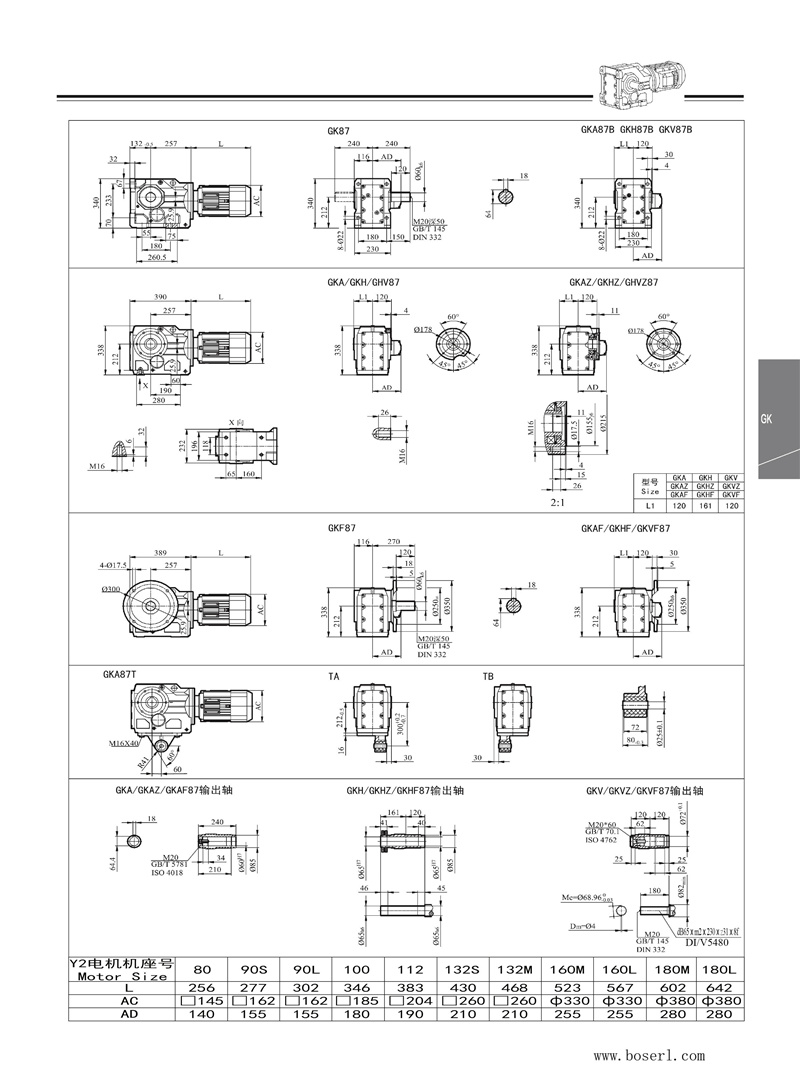

KA88減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）空心軸減速機

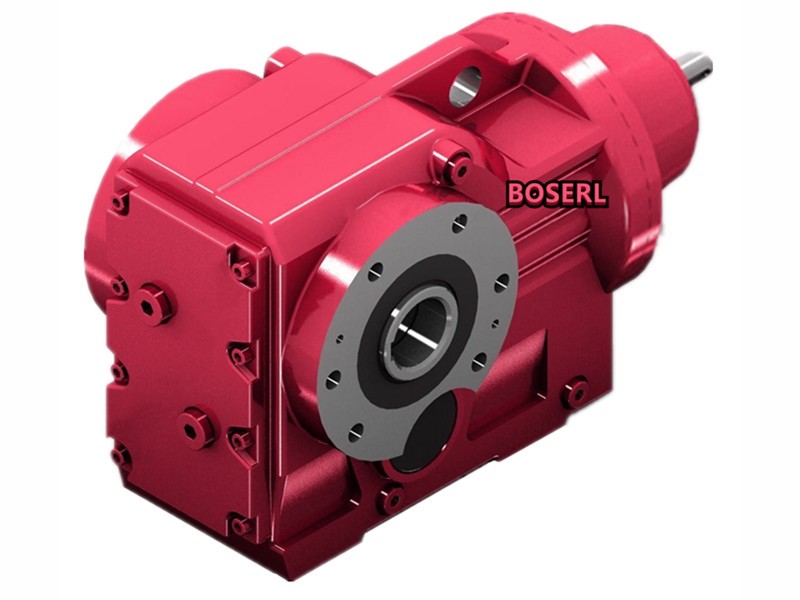

KA88斜齒輪錐齒輪減速機型號：
KA88減速電機型號參數：直角減速機
KA88減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y2.2KW | 2.2KW | 9.5rpm | 2210N.m | 1.2 |
| K87Y2.2KW | 2.2KW | 11rpm | 1900N.m | 1.4 |
| K87Y2.2KW | 2.2KW | 12rpm | 1730N.m | 1.55 |
| K87Y2.2KW | 2.2KW | 14rpm | 1540N.m | 1.75 |
| K87Y2.2KW | 2.2KW | 16rpm | 1290N.m | 2.1 |
| K87Y2.2KW | 2.2KW | 18rpm | 1190N.m | 2.3 |
| K87Y2.2KW | 2.2KW | 20rpm | 1050N.m | 2.6 |
| K87Y2.2KW | 2.2KW | 22rpm | 940N.m | 2.9 |
KA88減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y3KW | 3KW | 9.5rpm | 3010N.m | 0.9 |
| K87Y3KW | 3KW | 11rpm | 2590N.m | 1.05 |
| K87Y3KW | 3KW | 12rpm | 2360N.m | 1.15 |
| K87Y3KW | 3KW | 14rpm | 2100N.m | 1.3 |
| K87Y3KW | 3KW | 16rpm | 1760N.m | 1.55 |
| K87Y3KW | 3KW | 18rpm | 1620N.m | 1.65 |
| K87Y3KW | 3KW | 20rpm | 1440N.m | 1.85 |
| K87Y3KW | 3KW | 22rpm | 1280N.m | 2.1 |
| K87Y3KW | 3KW | 25rpm | 1150N.m | 2.3 |
| K87Y3KW | 3KW | 28rpm | 1000N.m | 2.7 |
| K87Y3KW | 3KW | 32rpm | 900N.m | 2.9 |
| K87Y3KW | 3KW | 38rpm | 745N.m | 3.4 |
KA88減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y4KW | 4KW | 12rpm | 3080N.m | 0.9 |
| K87Y4KW | 4KW | 14rpm | 2730N.m | 1 |
| K87Y4KW | 4KW | 17rpm | 2300N.m | 1.15 |
| K87Y4KW | 4KW | 18rpm | 2110N.m | 1.3 |
| K87Y4KW | 4KW | 20rpm | 1880N.m | 1.4 |
| K87Y4KW | 4KW | 23rpm | 1680N.m | 1.6 |
| K87Y4KW | 4KW | 25rpm | 1510N.m | 1.8 |
| K87Y4KW | 4KW | 29rpm | 1310N.m | 2.1 |
| K87Y4KW | 4KW | 33rpm | 1170N.m | 2.2 |
| K87Y4KW | 4KW | 39rpm | 970N.m | 2.6 |
KA88減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y5.5KW | 5.5KW | 17rpm | 3130N.m | 0.85 |
| K87Y5.5KW | 5.5KW | 18rpm | 2880N.m | 0.95 |
| K87Y5.5KW | 5.5KW | 21rpm | 2560N.m | 1.05 |
| K87Y5.5KW | 5.5KW | 23rpm | 2280N.m | 1.2 |
| K87Y5.5KW | 5.5KW | 26rpm | 2050N.m | 1.3 |
| K87Y5.5KW | 5.5KW | 29rpm | 1780N.m | 1.5 |
| K87Y5.5KW | 5.5KW | 33rpm | 1600N.m | 1.6 |
| K87Y5.5KW | 5.5KW | 40rpm | 1320N.m | 1.9 |
| K87Y5.5KW | 5.5KW | 46rpm | 1140N.m | 2.4 |
| K87Y5.5KW | 5.5KW | 52rpm | 1010N.m | 2.6 |
KA88減速機配7.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y7.5KW | 7.5KW | 23rpm | 3120N.m | 0.85 |
| K87Y7.5KW | 7.5KW | 26rpm | 2800N.m | 0.95 |
| K87Y7.5KW | 7.5KW | 29rpm | 2430N.m | 1.1 |
| K87Y7.5KW | 7.5KW | 33rpm | 2180N.m | 1.2 |
| K87Y7.5KW | 7.5KW | 40rpm | 1810N.m | 1.4 |
| K87Y7.5KW | 7.5KW | 46rpm | 1550N.m | 1.75 |
| K87Y7.5KW | 7.5KW | 52rpm | 1380N.m | 1.9 |
| K87Y7.5KW | 7.5KW | 58rpm | 1230N.m | 2 |
| K87Y7.5KW | 7.5KW | 64rpm | 1110N.m | 2.1 |
| K87Y7.5KW | 7.5KW | 74rpm | 960N.m | 2.4 |
| K87Y7.5KW | 7.5KW | 83rpm | 860N.m | 2.6 |
| K87Y7.5KW | 7.5KW | 90rpm | 790N.m | 2.3 |
| K87Y7.5KW | 7.5KW | 100rpm | 715N.m | 2.9 |
KA88減速機配11KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y11KW | 11KW | 33rpm | 3160N.m | 0.8 |
| K87Y11KW | 11KW | 40rpm | 2620N.m | 0.95 |
| K87Y11KW | 11KW | 47rpm | 2250N.m | 1.2 |
| K87Y11KW | 11KW | 52rpm | 2000N.m | 1.3 |
| K87Y11KW | 11KW | 59rpm | 1790N.m | 1.4 |
| K87Y11KW | 11KW | 65rpm | 1610N.m | 1.45 |
| K87Y11KW | 11KW | 75rpm | 1390N.m | 1.65 |
| K87Y11KW | 11KW | 84rpm | 1250N.m | 1.75 |
| K87Y11KW | 11KW | 91rpm | 1150N.m | 1.55 |
| K87Y11KW | 11KW | 101rpm | 1030N.m | 2 |
| K87Y11KW | 11KW | 116rpm | 900N.m | 2.2 |
| K87Y11KW | 11KW | 131rpm | 800N.m | 1.85 |
| K87Y11KW | 11KW | 146rpm | 715N.m | 2.1 |
| K87Y11KW | 11KW | 176rpm | 595N.m | 2.4 |
| K87Y11KW | 11KW | 202rpm | 515N.m | 2.5 |
KA88減速機配15KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y15KW | 15KW | 47rpm | 3080N.m | 0.9 |
| K87Y15KW | 15KW | 52rpm | 2730N.m | 0.95 |
| K87Y15KW | 15KW | 59rpm | 2440N.m | 1 |
| K87Y15KW | 15KW | 65rpm | 2200N.m | 1.05 |
| K87Y15KW | 15KW | 75rpm | 1910N.m | 1.2 |
| K87Y15KW | 15KW | 84rpm | 1710N.m | 1.3 |
| K87Y15KW | 15KW | 91rpm | 1570N.m | 1.15 |
| K87Y15KW | 15KW | 101rpm | 1420N.m | 1.5 |
| K87Y15KW | 15KW | 116rpm | 1230N.m | 1.6 |
| K87Y15KW | 15KW | 131rpm | 1100N.m | 1.35 |
| K87Y15KW | 15KW | 146rpm | 980N.m | 1.55 |
| K87Y15KW | 15KW | 176rpm | 810N.m | 1.7 |
| K87Y15KW | 15KW | 202rpm | 705N.m | 1.85 |
KA88減速機配18.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y18.5KW | 18.5KW | 59rpm | 3010N.m | 0.85 |
| K87Y18.5KW | 18.5KW | 65rpm | 2710N.m | 0.85 |
| K87Y18.5KW | 18.5KW | 75rpm | 2350N.m | 1 |
| K87Y18.5KW | 18.5KW | 84rpm | 2100N.m | 1.05 |
| K87Y18.5KW | 18.5KW | 101rpm | 1740N.m | 1.2 |
| K87Y18.5KW | 18.5KW | 116rpm | 1510N.m | 1.3 |
| K87Y18.5KW | 18.5KW | 131rpm | 1350N.m | 1.1 |
| K87Y18.5KW | 18.5KW | 146rpm | 1200N.m | 1.25 |
| K87Y18.5KW | 18.5KW | 176rpm | 1000N.m | 1.4 |
| K87Y18.5KW | 18.5KW | 202rpm | 870N.m | 1.5 |
KA88減速機配22KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| K87Y22KW | 22KW | 75rpm | 2790N.m | 0.8 |
| K87Y22KW | 22KW | 84rpm | 2500N.m | 0.9 |
| K87Y22KW | 22KW | 101rpm | 2070N.m | 1 |
| K87Y22KW | 22KW | 116rpm | 1800N.m | 1.1 |
| K87Y22KW | 22KW | 131rpm | 1600N.m | 0.95 |
| K87Y22KW | 22KW | 146rpm | 1430N.m | 1.05 |
| K87Y22KW | 22KW | 176rpm | 1190N.m | 1.15 |
| K87Y22KW | 22KW | 202rpm | 1030N.m | 1.25 |
KA88減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K88減速機
關鍵詞:通孔減速機型一體式_空心軸減速機配電機_直角中空減速機_中孔輸出減速機_KA系列減速機_GKA系列減速機_KA系列減速器_空心軸減速器_直角中空減速器_中孔輸出減速器_通孔減速器
KA系列齒輪減速馬達型號：KA38減速機,KA48減速機,KA58減速機,KA68減速機,KA78減速機,KA88減速機,KA98減速機,KA108減速機,KA128減速機,KA158減速機,KA168減速機,KA188減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
